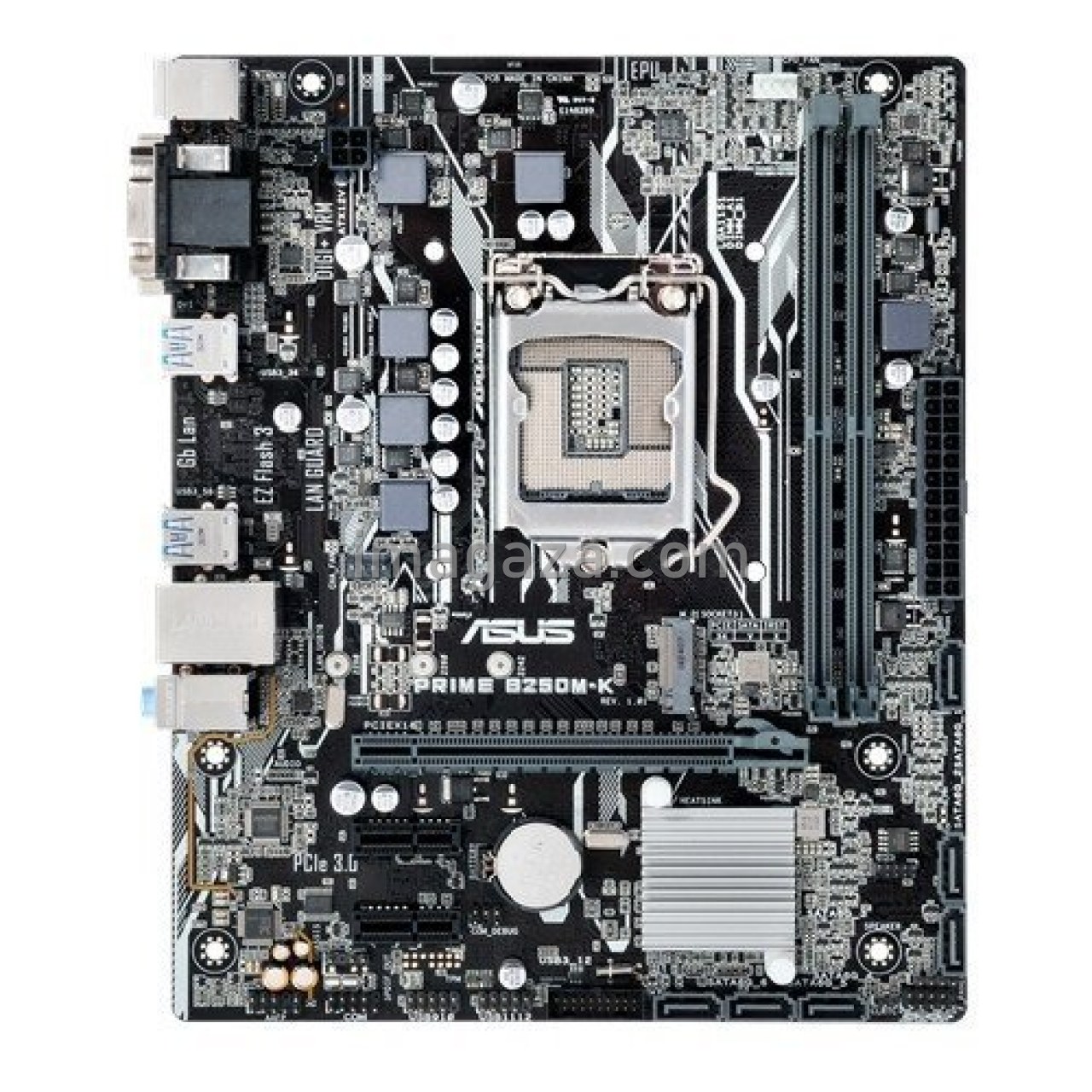

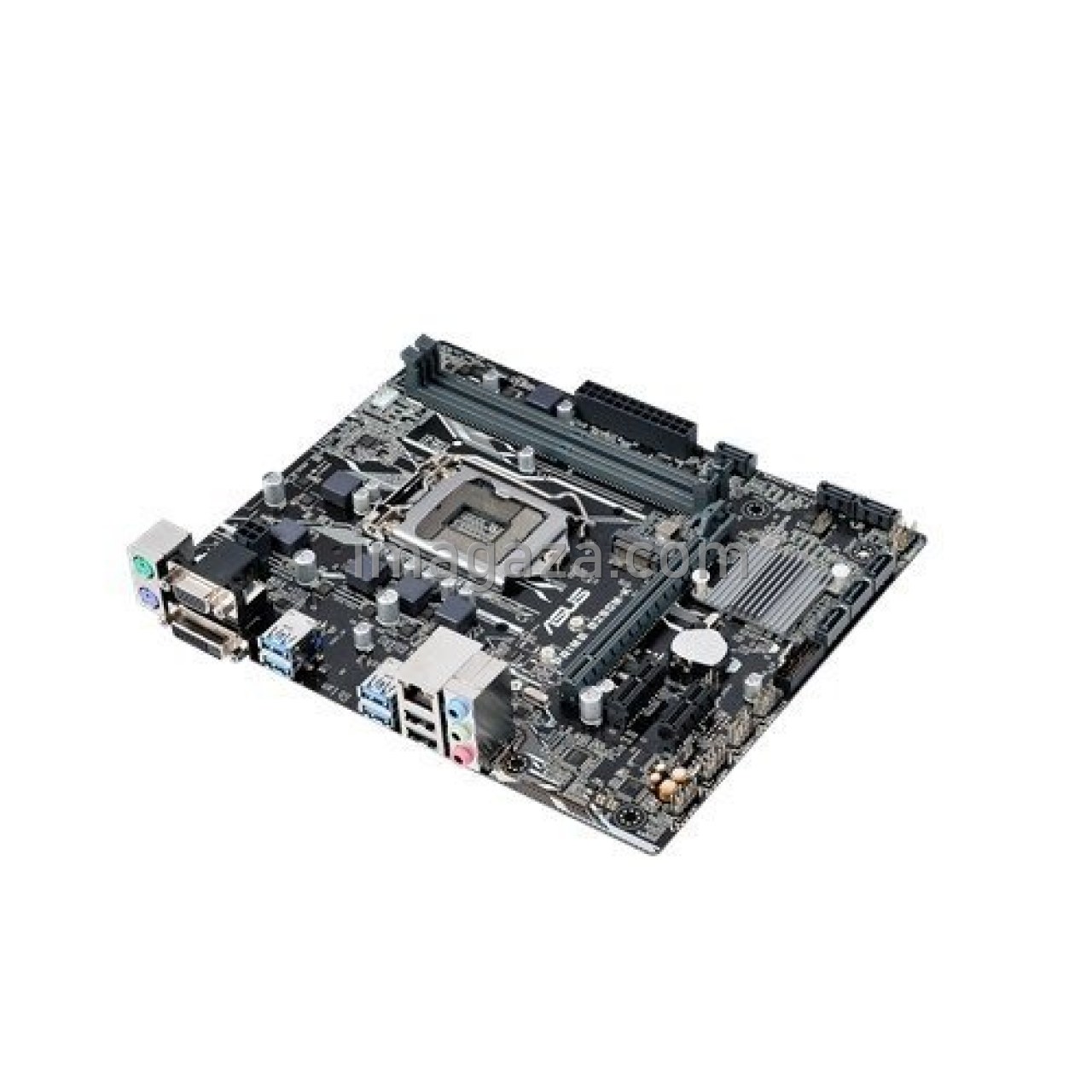

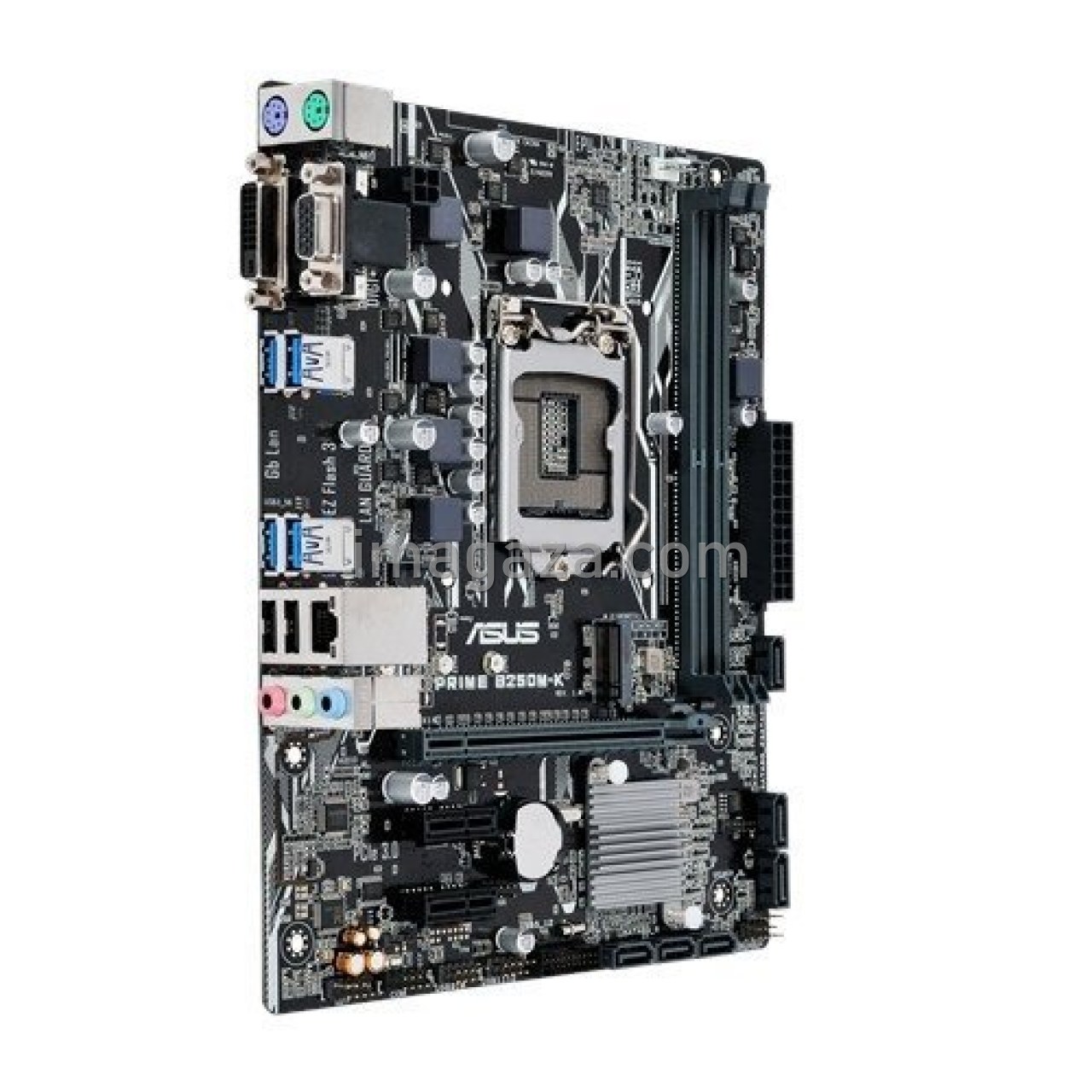

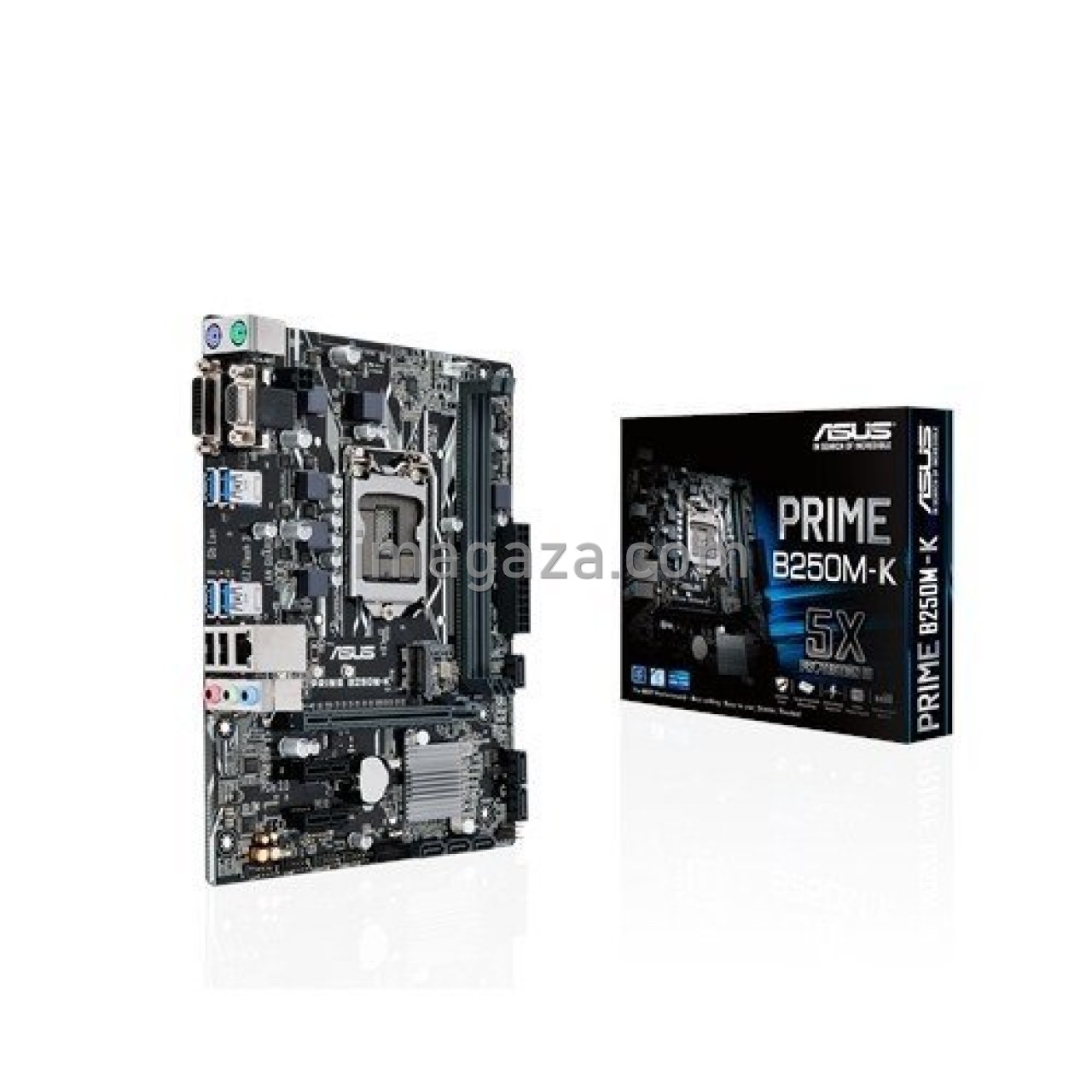

ASUS 1151p B250 DDR4 Prime B250M-K O/B Vga GLan DVI 6x Sata3 1x M2 Sata 3x (PCIe 3.0) mATX

CPU Build in Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Build in Intel® B250 Memory 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : DVI-D/RGB ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 Storage Intel® B250 Chipset : 1 x M.2 Socket 3*1, 6 x SATA 6Gb/s port(s), gray, LAN Realtek® RTL8111H Audio Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity USB Ports Intel® B250 Chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board) Intel® B250 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) Special Features ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) Type-A 2 x USB 2.0 1 x 8-channel Audio I/O Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x SCD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Operating System Windows® 10 64-bit Windows® 8.1 64-bit *2 Windows® 7 32-bit *2 Windows® 7 64-bit *2 Form Factor mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) Note *1 When a device in SATA mode is installed on the M.2 socket,SATA_1 port cannot be used. *2 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
